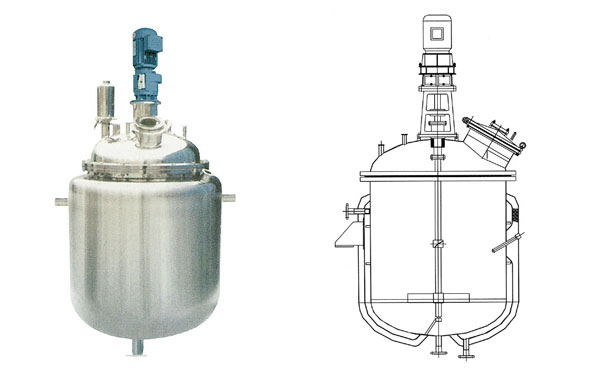

不锈钢反应釜
Sanitary Stainless Steel Pot
适用于制药、生物工程、化工、化学合成等行业之用。材质均采用SUS304或SUS316L。罐体设有夹套，夹套结构形式分为标准夹套、外盘管夹套、米络板蜂窝式夹套三种供选择。可加热、冷却，内表面采用镜面抛光，无卫生死角，全封闭的设计确保物料始终处在无菌状态下。封头(锥形)均经旋压加工、符合GMP标准。搅拌装置采用卫生级机械密封，容器保温采用聚氨酯或硅酸铝，接口采用ISO标准快装卡箍式，方便卫生，渡边经旋压加工，外表面采用抛光、喷砂、磨砂或冷轧原色亚光等多种形式，使容器在任何场地都能显示它的卓越品质。设备配备无菌空气呼吸器，CIP清洗喷头、视镜、法兰式快开人孔等装置。
Used in pharmacy, chemical project,fine
chemicals and composed chemical industry. The
material adopts SUS304 or SUS316L.The pot body
has jacket,and the jacket structure is of
standard jacket, outer circular pipe jacket and
Milo plate honey net jacket to be closed. It can
be heated or cooled;inner surface adopts mirror
polish,no dead angle,and closed design to ensure
material in asepsis condition.The conic tip
processed by spinning pressure,up to GMP
standard. The agitator adopts sanitary
mechanical seal, container insulation adopts
polyurethane or alumina silicate, joint adopts
ISO standard quick open clamp,sanitary and
easy,transferring sledge processed by spinning
pressure, outer surface adopts polish,
sand-blast, dull polish or cold rolled original
color subtopics, so to show the good quality of
containers in every occasion.The machine equips
with asepsis respirator, CIP cleaning spray
tip,sight glass,and flange quick open manhole.
主要技术数据表 Primary technical
data sheet
|
规格
L |
内筒直径ø
(mm) |
夹套直径ø
(mm) |
电动机功率
(kW) |
减速机型号 |
搅拌转速
(r.p.m) |
|
30 |
400 |
500 |
0.6-1.1 |
M2 |
60-85 |
|
50 |
500 |
600 |
0.6-1.1 |
M3 |
60-85 |
|
100 |
550 |
650 |
1.1-1.5 |
M4 |
60-85 |
|
150 |
600 |
700 |
2.2 |
M6 |
60-85 |
|
200 |
650 |
750 |
2.2 |
M6 |
60-85 |
|
300 |
800 |
900 |
2.2 |
M6 |
60-85 |
|
500 |
900 |
1000 |
2.2 |
M6 |
60-85 |
|
800 |
1100 |
1200 |
4 |
M8 |
60-85 |
|
1000 |
1200 |
1300 |
4 |
M8 |
60-85 |
|
1500 |
1300 |
1400 |
4 |
M8 |
60-85 |
|
2000 |
1400 |
1500 |
4 |
M8 |
60-85 |
|
2500 |
1400 |
1500 |
7.5 |
BLB7.5-4-13 |
90 |
|
3000 |
1400 |
1500 |
7.5 |
BLB7.5-4-13 |
90 |
|
3500 |
1400 |
1500 |
7.5 |
BLB7.5-4-13 |
90 |
|
4000 |
1500 |
1600 |
7.5 |
BLB7.5-4-13 |
63 |
|
5000 |
1600 |
1700 |
7.5 |
BLB7.5-4-13 |
63 |
|
6000 |
1800 |
1900 |
15 |
BLB7.5-4-13 |
100 |
|
8000 |
2000 |
2100 |
15 |
BLB7.5-4-13 |
100 |
|
32000 |
3000 |
3200 |
37 |
BLB450-11-45 |
50-100 |
|
