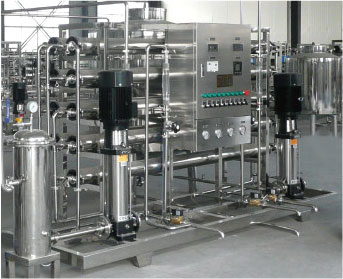

纯净水装置
Purified Water Device

    利用反渗透的独特原理，生产纯净水。能大量降低水的无机盐、有机物、细菌等，主要应用于瓶装纯净水、小区生活用水、远洋饮用淡水。

典型工艺
原水 石英砂过滤器 活性碳过滤器
软化器 反渗透装置 紫外灭菌
臭氧发生器
纯净水箱 灌装

主要技术参数
出水流量：0.3-100m3/h
工作温度：3-35℃
PH值范围：3-10
工作压力：0.5-1.55Mpa

It uses the unique principle of anti-infiltration to produce purified water and can reduce inorganic salt, organisms and bacteria in water considerably. It is mainly used for bottled purified water, living water, residential domestic water and far-ocean fresh drinking water.

Typical process
Raw water Quartz sand filter Activated carbon filter
Softening apparatus Anti-infiltration device Ultraviolet Germicide
Ozonizer
Purified water tank Filling and bottling

Main technical parameters
Output water flow: 0.3-100m3/h
Working temperature: 3-35℃
PH value range: 3-10
Working pressure: 0.5-1.55Mpa
