品介绍
PTODUCTS

过滤器系统  Filter System

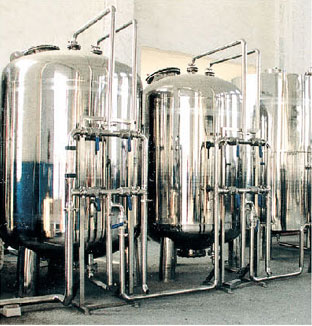

机械过滤器
Mechanical Filter

        机械过滤器也称为压力式过滤器,是纯水制备的前期预处理、水净化系统重要组成部分,材质有钢制衬胶或不锈钢,根据过滤介质的不同分为多介质过滤器,活性碳过滤器,锰砂过滤器,根据实际情况可联合使用也可以单独使用。

Mechanical filter, namely pressure filter, is a main composition of the pure water preparation preprocessing, water purified system,the material includes steel rubber lining or stainless steel,the filters can be classified into multimedia filter, activated carbon filter, manganese sand filter, they can be used jointly or singly according to the fact.

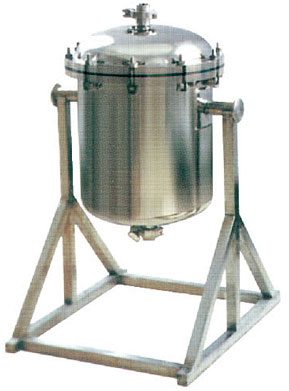

板框过滤器
Frame Filter

        不锈钢多层框板式压滤机,适用于浓度50%以下之粘度较低、含渣量较少的液体作密闭过滤以达到提纯,灭菌、澄清等精滤、半精滤的要求,直接选用微孔滤膜,可不经微孔薄膜过滤器过滤可达到无菌过滤之目的。

本机过滤面积大,流量大、适用范围大、广泛应用在制药、化工、食品等行业。

Stainless steel multi-layer frame filter, apply for the closure filtration of liquid below the concentration of 50% with low viscosity and slag content, so that the straining ,semi-straining requirements such as disinfection, clarification can be reached ,the micro filtration membrane is applied ,so the purpose of aseptic filtration can be achieved without the micromesh membrane filter.
This machine has wide filter area,heavy flow, wide range of application,and is broadly used in the pharmaceutical industry, chemical industry, food industry and so on.

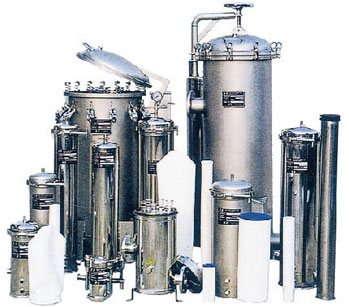

精密过滤器
Precision Filter

    精密过滤器也称保安过滤器,能进一步去除水中悬浮颗粒及其它杂质,它采用微孔陶瓷、微孔无毒塑料、蜂房式管状滤芯。

Precision filter, namely core filter,can further remove the suspended solids and other impurity in the water,it is made of micro hole chinaware, micro hole non-toxin plastic and cell pipe core.


钛棒过滤器
Titanium Stick Filter

        钛棒过滤器使用钛粉末烧结滤芯,用于粗滤或中间过滤。滤芯有流量大、易清洗、精度高、耐高温、耐腐蚀、无毒、无微粒脱落、寿命长(正常使用寿命为3-4年)、机械强度高等优点。钛棒过滤器在医药、饮料、化工、酿造等行业广泛应用,符合医药行业GMP要求,深受药厂欢迎。

Titanium stick filter, using titanium powder frit filter element,is used in the roughing filtering and intermediate filtering. Advantages of the filter elements are heavy flow, easily cleaned, high precision, high temperature resistance, corrosion resistance, non-toxin, non shedding particle, long life span (normal life 3-4 years), high strengthen etc. Titanium stick filter is broadly used in pharmacy industry, drink industry, chemical industry and brewage industry etc. It conforms to the GMP requirements of the pharmaceutical industry ,and it is greatly welcomed by pharmaceutical plants.

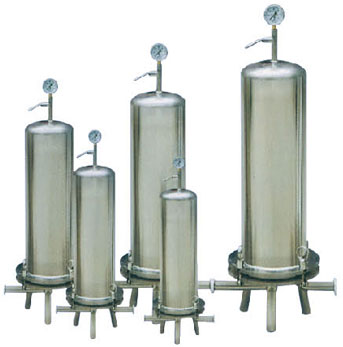

微孔过滤器
Micro Hole Filter

        微孔过滤器材质为优质进口不锈钢(304、316L)。其特点是体积小、重量轻、使用方便、过滤面积大、堵塞率低、过滤速度快、无污染、热稳定性及化学稳定性好。微孔过滤器能滤除绝大部分微粒,所以广泛应用于精滤和除菌工艺。

The material of the micro hole filter is imported stainless steel in good quality (304,316L).Features: small volume, light, easy to use, broad filtering area, low block rate, high filtering speed, no pollution,good heat stability and chemical stability . Micro hole filter can remove the great mass of particles,so it is broadly used in the process of rigid filtering and bacterium removing .
