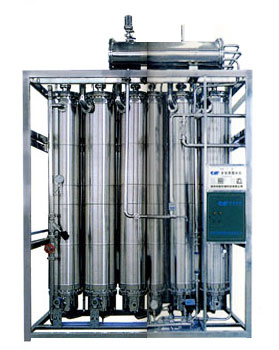

LD型多效蒸馏水机,按照《YY0229-1995多效蒸馏水机》行业标准设计制造,所有零部件均选用304或316L不锈钢制成,产生的蒸馏水纯度高、无热原、完全符合中国药典2000年版注射用水各项质量指标规定。是各种血液制品、针剂、大输液、生物抗菌等药品生产厂家及饮用蒸馏水生产厂的理想设备。
本机有全自动、半自动、手动三种机型可供选择,以满足用户的不同需要。
Multiple effect distilled
water machine is used to produce germfree
injection in pharmacy industry, can meet the
requirement of the industries, for instance,
pharmacy, food, drink, electronics and so
on, and it accords with the requirement of
GMP.
LD multiple effect distilled water machine,
is designed and produced according to
standard of 《YY0229 multiple effect
distilled water machine》, all the parts of
it are made of 304 or 316L stainless
steel. The produced distilled water is in
high purity and heat-free, absolutely
accords with each quality target of the
injection water in Chinese Pharmacopoeia
which was published in 2005. It is a perfect
device for the pharmacy producers to produce
diversified blood goods, infusion, biologic
antibiont and so on, and it is a perfect
device for the producer of the drinkable
distilled water.
This machine have three types: automatic,
semi-automatic and manual, to meet users
different requirements.

技术参数 Technical
parameter
型号 规格
Type
specification |
蒸馏水产量
Output of the
distilled water
L / h |
蒸汽耗量
Consumption
of the
steam
Kg/h |
纯化水耗量
Consumption
of the
purified water
L/h |
外型尺寸
Dimension
L × W × H
mm |
净重
Net
weight
Kg |
LD200-3 |
>200 |
75 |
240 |
1000×800×2000 |
240 |
LD300-4 |
>300 |
90 |
360 |
1100×800×2200 |
450 |
LD500-4 |
>500 |
150 |
600 |
1400×900×2500 |
820 |
LD500-5 |
>500 |
130 |
600 |
1600×900×2500 |
920 |
LD1000-5 |
>1000 |
260 |
1100 |
2100×1100×3100 |
1800 |
LD1500-5 |
>1500 |
400 |
1670 |
2500×1300×3400 |
2100 |
LD2000-5 |
>2000 |
525 |
2200 |
3000×1300×3400 |
2200 |
LD3000-5 |
>3000 |
800 |
3300 |
3500×1500×3800 |
3300 |

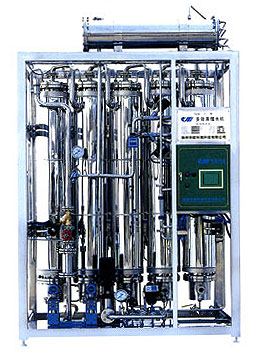

NLD系列内螺旋多效蒸馏水机由我公司通过引进、消化、吸收国外先进技术结合国情研制开发的新产品,各项指标达到同类产品国际水平。
独特的内螺旋水汽“三级”分离系统,细菌内毒素(热原)去除更彻底。
微机组态全自动控制方式,真正实现智能化控制。
采用液位控制技术,实现生产蒸馏水的同时生产纯蒸汽。
Inner screw multiple
effect distilled water machine in NLD series
is our company new product, developed by
introducing, digesting, absorbing foreign
advanced technique and combining with the
situation of our country, its index reaches
the international level of the vicarious
product.
Unique inner screw vapor hree stage
eparation system, can clear toxin (pyrogen)
in bacteria more thoroughly.
The quto control of computer figuration
realizes the process control of
human-machine interface.
Adopt the technique of the level control,
producing distilled water and pure steam at
the same time.

技术参数 Technical
parameter
型号 规格
Type
specification |
外型尺寸
Dimension
L × W × H
mm |
生产
能力
Capacity
L/h |
蒸汽耗量
Consumption
of the
steam
Kg/h |
蒸馏水出水快卡联接
Quick card connection for distilled
water discharging |
纯化水耗量
Consumption
of the
purified water
L/h |
进气口径
Diameter of the steam intake |
NLD200-3 |
1200×950×1800 |
>200 |
75 |
1/2 |
260 |
11/4 |
NLD300-4 |
1400×950×1850 |
>300 |
95 |
1/2 |
375 |
11/4 |
NLD500-4 |
1650×1150×2600 |
>500 |
152 |
3/4 |
610 |
11/2 |
NLD500-5 |
2000×1150×2600 |
>500 |
138 |
3/4 |
580 |
11/2 |
NLD1000-5 |
2240×1200×2850 |
>1000 |
270 |
1" |
1190 |
2" |
NLD1000-6 |
2600×1200×2850 |
>1000 |
245 |
1" |
1100 |
2" |
LD1500-5 |
2240×1250×3200 |
>1500 |
430 |
11/4 |
1790 |
2" |
LD1500-6 |
2600×1250×3200 |
>1500 |
386 |
11/4 |
1690 |
2" |
LD2000-6 |
3140×1400×3000 |
>2000 |
510 |
11/4 |
2395 |
21/2 |
LD3000-6 |
3300×1500×3500 |
>3000 |
795 |
11/2 |
3500 |
21/2 |
|
